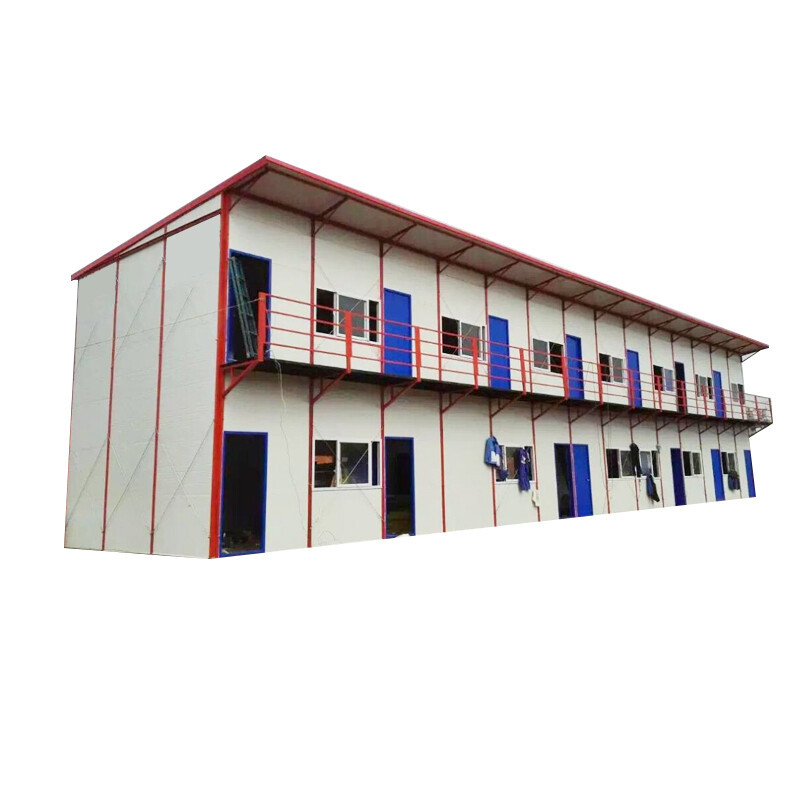

Movable board house is a kind of environmental protection and economic movable board house with color steel plate as the skeleton, sandwich plate as the enclosure material, space combination with standard modulus series, bolt connection of components, a new concept. It can be easily and quickly assembled and disassembled, realizing the general standardization of temporary buildings, establishing the construction concept of environmental protection, energy saving, fast and efficient, and making temporary houses enter a series of development, integrated production, matching supply, inventory and multiple turnover of the final product field.
| Size | Length | 6058mm / 6000mm or customized | ||
| Width | 2438mm /3000mm or customized | |||
| Height | 2600mm / 2791mm / 3000mm or customized | |||
| Clear height indoor | 5800mm*2200mm*2300mm, it is changable | |||
| Option | Drainage system | Provided plan, design and constrution | ||
| Electric system | Provided plan, design and constrution | |||
| Technical parameter | esistant temperature | -40ºC to 40ºC | ||
| Wind resistance | 210km/h | |||
| Earthquake resistance | Grade 8 | |||
| Standard accessory | Floor System | PVC, plywood or customized | ||
| Window System | Aluminum alloy shutter window and the plastic-steel window, single or double glass | |||
| Door System | Steel door / Fire-proof door / Sandwich panel door | |||
| Wall System | 50/75/100mm EPS sandwich panel, rock wool sandwich panel,glass fiber sandwich panel, or PU sandwich panel | |||
| Roof System | Top structure + 70mm thick integrated PU foam insulation + embedded electrical system | |||
| Chassis System | steel struction chassis + 18mm thickness cement-fiber board + 2mm thickness PVC floor sheet (glass wool insulation for optional) | |||
