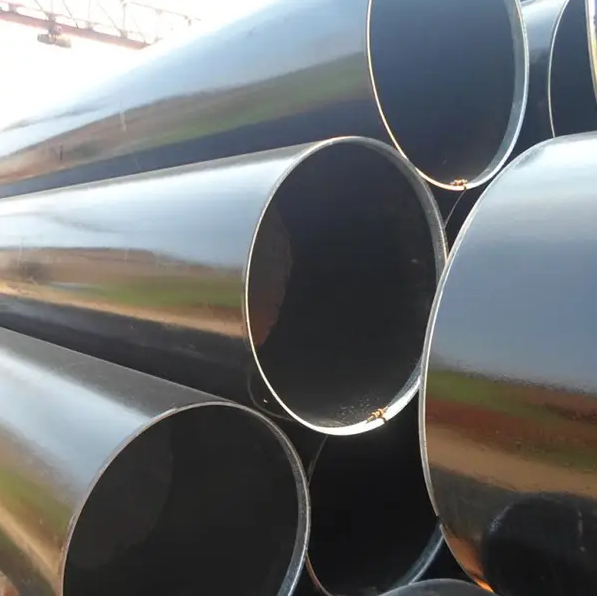

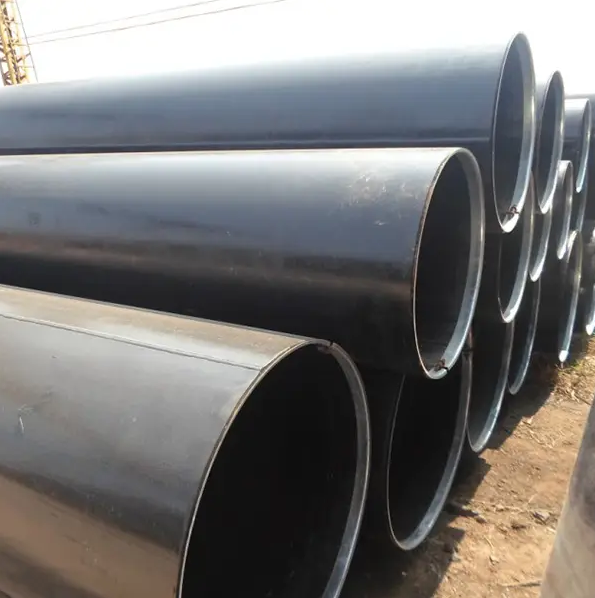

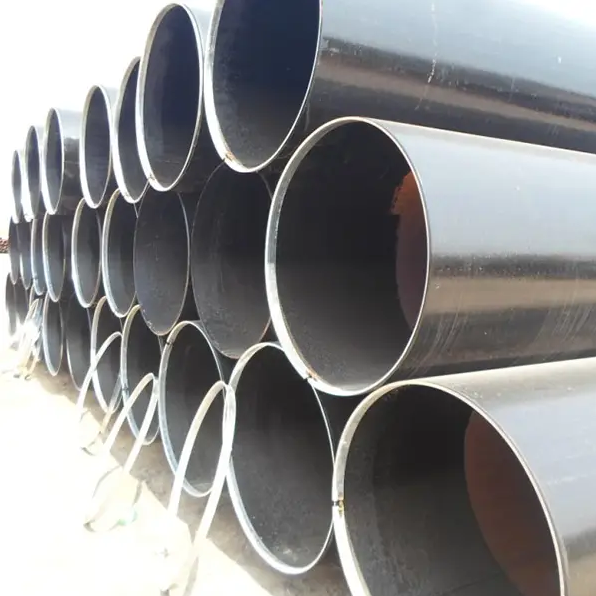

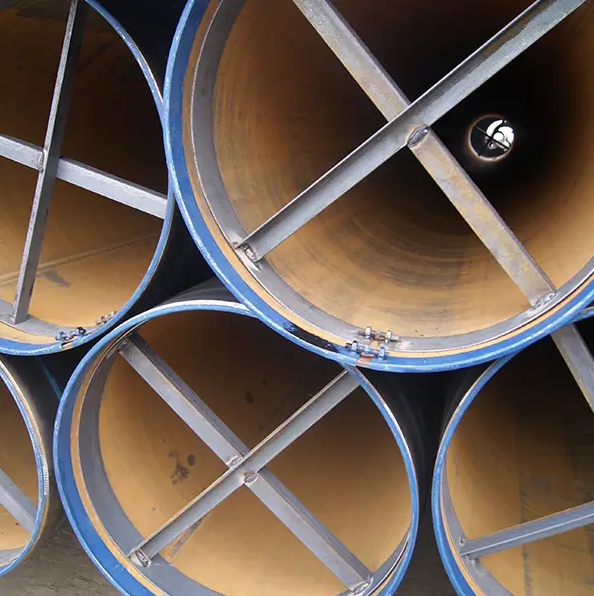

Product: LSAW Steel Pipe/SAWL Steel Pipe
Application: Used for oil/gas/water Transmission,Engineering/Offshore projects.
Size:
OD: 457mm-1420mm
WT: 7-50mm
LENGTH: 5.8/6/11.8/12m
Pipe Standard:
API 5L PSL1/PSL2 Gr.A,Gr.B,X42,X46,X52,X56,X60,X65,X70
ASTM A53/A252/A500/A672/A691/A139
EN10210/EN10219/EN10217/EN10208/EN10297
AS1163/JIS G3457

Email : hanstatsteel@gmail.com
Phone/Whatsapp : +86 151 5413 7725
Addess : Huaiyin District,Jinan City,Shandong,China.

GET A QUOTE

kongsi:

Description

Description
LSAW (Longitudinally Submerged Arc Welded Steel pipes) in leaflets plate as raw material, the steel plate in the mold or molding machine pressure (volume) into using double-sided submerged arc welding and flaring from production.
Longitudinally Submerged Arc Welding Pipe is subdivided into UOE,RBE,JCOE steel pipe according to its different forming methods.Longitudinal high-requency welded steel pipe has the characteristics of relatively simple process and fast continuous production, andhas wide use in civil construction,petrochemical light industry and other sectors. Mostly used to transport low pressure fluids or madeinto various engineering components and light industrial products.
Features:
● Large diameter steel pipes
● Thick walls
● High-Pressure resistance
● Low-temperature resistance can only use one HS code to declare the pipe fitting. But the straight tubes can not be used with one HS code.
Specification

O.D.		W.T.							Length(m)
Inch	mm	Min.Yield Strength(Mpa)
Inch	mm	245(B)	290(X42)	360(X52)	415(X60)	450(X65)	485(X70)	555(X80)
16	406	6.0-14.0	6.0-13.0	6.0-12.0	6.0-11.0	6.0-10.5	6.0-10.0	6.0-9.0	6.0-12.3
18	457	6.0-15.0	6.0-14.0	6.0-13.0	6.0-12.0	6.0-11.5	6.0-11.0	6.0-10.0	6.0-12.3
20	508	6.0-16.0	6.0-15.0	6.0-14.0	6.0-13.0	6.0-12.5	6.0-12.0	6.0-11.0	6.0-12.3
22	559	6.0-17.0	6.0-16.0	6.0-15.0	6.0-14.0	6.0-13.5	6.0-13.0	6.0-12.0	6.0-12.3
24	610	6.0-18.0	6.0-17.0	6.0-16.0	6.0-15.0	6.0-14.5	6.0-14.0	6.0-13.0	6.0-12.3
26	660	6.0-19.0	6.0-18.0	6.0-17.0	6.0-16.0	6.0-15.0	6.0-15.0	6.0-14.0	6.0-12.3
28	711	6.0-20.0	6.0-19.0	6.0-18.0	6.0-17.0	6.0-16.5	6.0-16.0	6.0-15.0	6.0-12.3
30	762	7.0-21.0	7.0-20.0	7.0-19.0	7.0-18.0	7.0-17.5	7.0-17.0	7.0-16.0	6.0-12.3
32	813	7.0-22.0	7.0-21.0	7.0-20.0	7.0-19.0	7.0-18.5	7.0-18.0	7.0-17.0	6.0-12.3
34	864	7.0-23.0	7.0-22.0	7.0-21.0	7.0-20.0	7.0-19.5	7.0-19.0	7.0-18.0	6.0-12.3
36	914	8.0-24.0	8.0-23.0	8.0-22.0	8.0-21.0	8.0-20.5	8.0-20.0	8.0-19.0	6.0-12.3
38	965	8.0-25.0	8.0-24.0	8.0-23.0	8.0-22.0	8.0-21.5	8.0-21.0	8.0-20.0	6.0-12.3
40	1016	8.0-26.0	8.0-25.0	8.0-24.0	8.0-23.0	8.0-22.5	8.0-22.0	8.0-21.0	6.0-12.3
42	1067	8.0-26.0	8.0-25.0	8.0-24.0	8.0-23.0	8.0-22.5	8.0-22.0	8.0-21.0	6.0-12.3
44	1118	9.0-27.0	9.0-26.0	9.0-24.5	9.0-23.5	9.0-22.8	9.0-22.0	9.0-21.0	6.0-12.3
46	1168	9.0-27.0	9.0-26.0	9.0-24.0	9.0-23.5	9.0-22.8	9.0-22.0	9.0-21.0	6.0-12.3
48	1219	9.0-28.0	9.0-27.0	9.0-25.4	9.0-24.0	9.0-23.5	9.0-23.0	9.0-22.0	6.0-12.3
52	1321	9.0-28.0	9.0-27.0	9.0-25.4	9.0-24.2	9.0-23.5	9.0-23.0	9.0-22.0	6.0-12.3
56	1422	10.0-29.0	10.0-28.0	10.0-26.0	10.0-24.5	10.0-23.8	10.0-23.0	10.0-22.0	6.0-12.3

Tolerance of Outside Diameter and Wall Thickness

Types	Standard
Types	SY/T5040-2000	SY/T5037-2000	SY/T9711.1-1977	ASTM A252	AWWA C200-97	API 5L PSL1
Tube end OD deviation	±0.5%D	±0.5%D	-0.79mm～+2.38mm	<±0.1%T	<±0.1%T	±1.6mm
Wall thickness	±10.0%T	D<508mm, ±12.5%T	-8%T～+19.5%T	<-12.5%T	-8%T～+19.5%T	5.0mm
Wall thickness	±10.0%T	D>508mm, ±10.0%T	-8%T～+19.5%T	<-12.5%T	-8%T～+19.5%T	T≥15.0mm, ±1.5mm

Standard:

ASTM A53:Standard Specification for Pipe, Steel, Black and Hot-Dipped, Zinc-Coated, Welded and Seamless

API 5L：Specification for Line Pipe(Two levels PSL 1 and PSL 2 of seamless and welded steel pipes for use in pipeline transportation systems in the petroleum and natural gas industries.)

A252：Standard Specification for Welded and Seamless Steel Pipe Piles

A500：Specification for Cold-Formed Welded and Seamless Carbon Steel Structural Tubing in Rounds and Shapes

A139：Standard Specification for Electric-Fusion (Arc)-Welded Steel Pipe (NPS 4 and Over)

A672：Specification for Electric-Fusion-Welded Steel Pipe for High-Pressure Service at Moderate Temperatures

A691：Specification for Carbon and Alloy Steel Pipe, Electric-Fusion-Welded for High-Pressure Service at High Temperatures

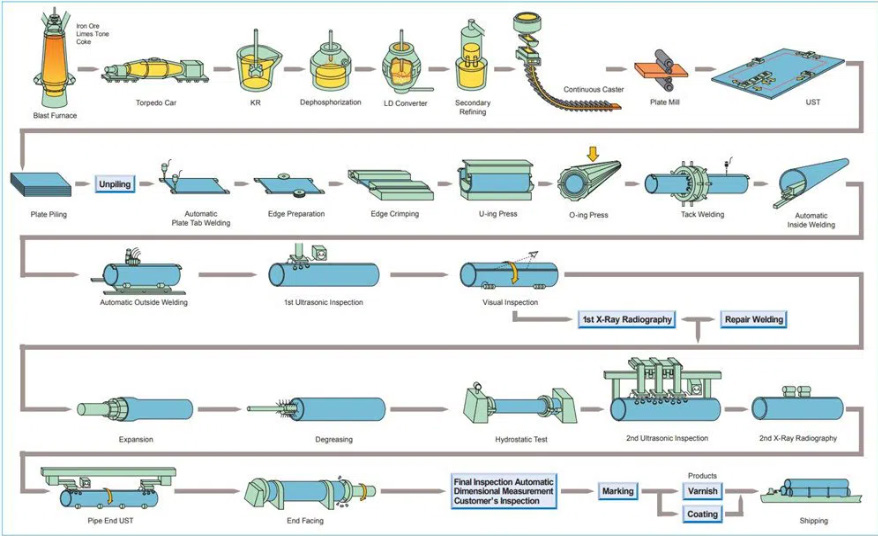

Process

Packing

● Plastic caps plugged at the two sides of pipe ends

● Should be avoided by the steel strapping and transport damage

● Bundled signs should be uniform and consistent

● The same bundle(batch) of steel pipe should be came from the same furnace.

● The steel pipe has the same furnace number, the same steel grade, the same specifications.
